Precision Engraving:

• YL CO2 Laser Tubes offer superior construction to produce stable laser beams for precise markings on a wide variety of materials.
• Cut through thick materials and engrave your designs faster, deeper, and clearer.

Extended Lifetime:

• 100W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 12,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 11,000–12,000 Hours
• Moderate Power 40–70% = 8,000–10,000 Hours
• High Power 70–100% = 4,500–5,000 Hours

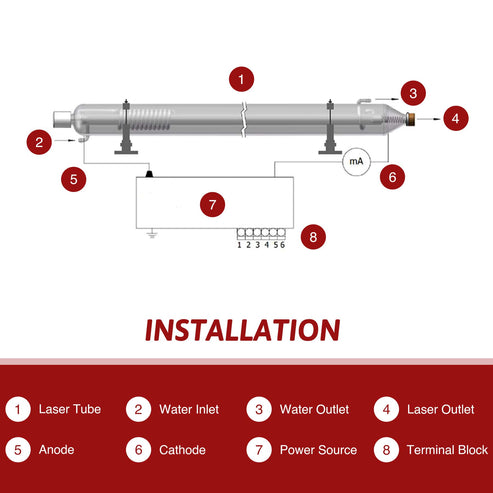

Easy to Install:

• The preinstalled YL cathode and anode terminal connections and cooling ports allow for fast and easy hook-up to both your power supply and water cooling system, without any need to bother with threading or soldering wires.

Features:

• POWERFUL LASER TUBE: This 100W CO2 laser tube offers outstanding performance ideal for all your applications, including engraving, cutting, and marking acrylic, cardboard, ceramics, cloth, glass, leather, paper, plastic, stone, wood, and more!
• PREMIUM CONSTRUCTION: Made out of borosilicate glass, copper, and aluminum alloy, this high-power laser tube is built to last.

• LONG-LASTING PERFORMANCE: The excellent design and materials of this laser tube create a durable hermetic seal and offer superior heat dissipation to give you a maximum service life of 12,000 hours of operation at low-intensity settings. (Constant use at higher settings will reduce the tube's mean time to failure to around 5000 hours.)
• SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.
• SPECIFICATIONS: This borosilicate glass laser tube is 1450 mm (57") long and 60 mm (2.4") across. Your laser cutting machine should have a little more space to allow a proper fit. It operates at 22kV and 22 mA or less.
• ALIGNMENT GUIDANCE COMPATIBLE: Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!
• We recommend using the OMTech CW-5200 industrial chiller with distilled water to maximize the laser tube’s lifetime.

Specs:

• Input Power: 220V/50Hz

• Rated Power: 100W
• Length: 1450 mm (4 ft. 9 in.)
• Outer Diameter: 60 +/- 2 mm (2.4 in.)
• Operating Voltage: 22 kV
• Trigger Voltage: 31 kV
• Operating Current: 24 mA
• Beam Diameter: 6 mm (0.24 in.)
• Expected Lifespan (MTTF): 5000-12000 hr.
• Rec. Operational Temperature: 15-32°C (60-90°F)
• Recommended Humidity: 30-60%
• Net Weight: 5 kg (11 lb.)

Package Includes:

• 1 x 100W H4 CO2 Laser Tube
• 1 x User Manual

Warranty:

• No need to worry! We offer a 6-month warranty on all laser tubes 80W and up.

Certifications:

• FDA Compliant
• CE Certification
